Detailed introduction

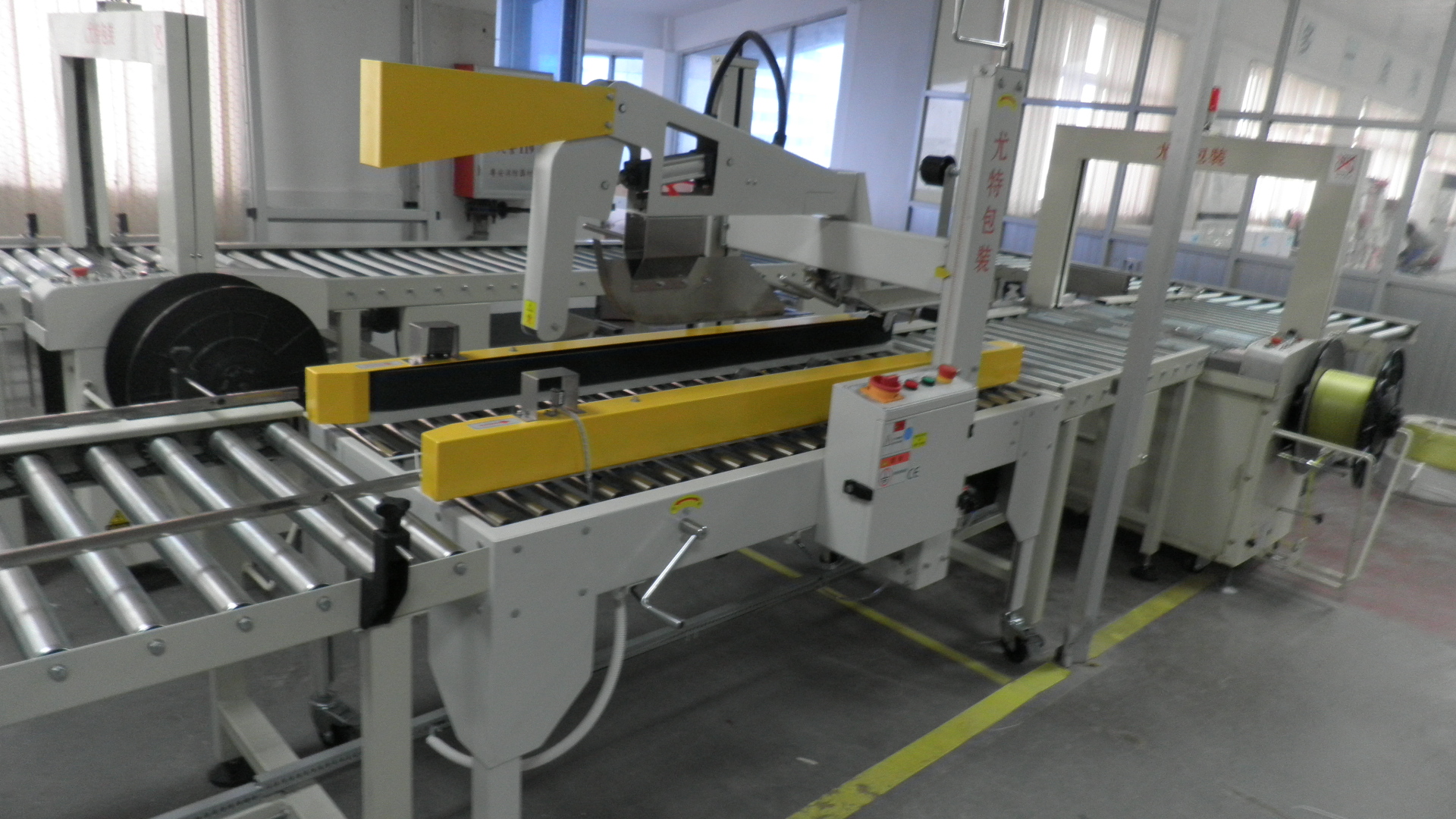

Shanghai Youte YT-05S Automatic Carton Folding and Sealing Machine

Product Name: Automatic Carton Folding and Sealing Machine

Product Number: YT-05S

Suitable for single-size cartons.

Automatically folds in the top and back lids of the carton, quickly and flattening without corner folds.

Side belt drive, heavy-duty and easy to operate.

Standard specifications available; spare parts readily available.

Shanghai Youte YT-05S Automatic Carton Folding and Sealing Machine Technical Parameters

Applicable Cartons: (L) 200 - 600mm (W) 150 - 500mm (H) 150 - 500mm

Table Height: Small 650mm, Large 800mm

Sealing Speed: 750 cartons/hr

Machine Dimensions: (L) 1700mm (W) 910mm (H) 1570mm

Power Supply: 110/220V single phase, 50/60 Hz or customer specified

Air Supply: 5kg/cm²

Tape: 48mm, 60mm (choose one)

Machine Weight: Approx. 230 kg

：
