YT-2000FZ Rotary online winding machine
Product Model
YT-2000FZDate
2025-10-30Company type
Source manufacturersViews
Our professional customer service team is available online to answer your questions and help you resolve any issues you encounter!
RELATED PRODUCTS
RELATED PRODUCTS YT-2000FZ Rotary onl
Model：YT-2000FZ
YT-1800FC Gantry win
Model：YT-1800FC
Detailed introduction

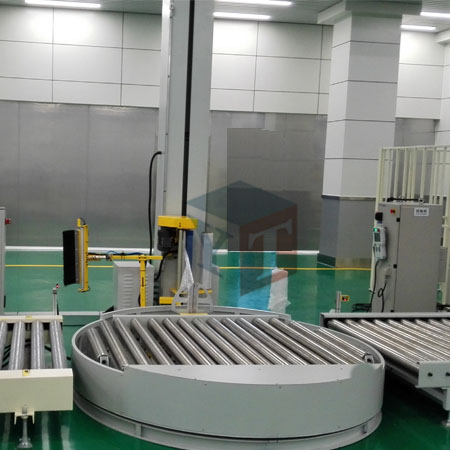

Shanghai Yute YT-2000FZ Online Wrapping Machine
Product Name: Online Wrapping Machine
Product Number: YT-2000FZ
Technical Parameters
Wrapping Specifications (L×W): (800-1400)mm×(800-1300)mm in the conveying direction
Packaging Height (max): 2000mm (can be increased upon request)
Packaging Efficiency: 20-40 pallets/hour
Turntable Speed: 0-12rpm, frequency-adjustable, with smooth start and stop
Turntable Dimensions: Diameter: 2000mm, Height: 500mm
Turntable Load Capacity (max): 2000kg
Operating Space: 2895mm×2000mm
Machine Weight (max): 1180kg
Overall Dimensions: 2895mm×2000mm×2850mm
Motor Power/Voltage Turntable 750W, membrane holder 180W, column 370W
Power supply 380V AC 50HZ/20A, three-phase five-wire
